CJWA自动洗涤压滤机产品介绍

CJWA Automatic Washing Filter Press

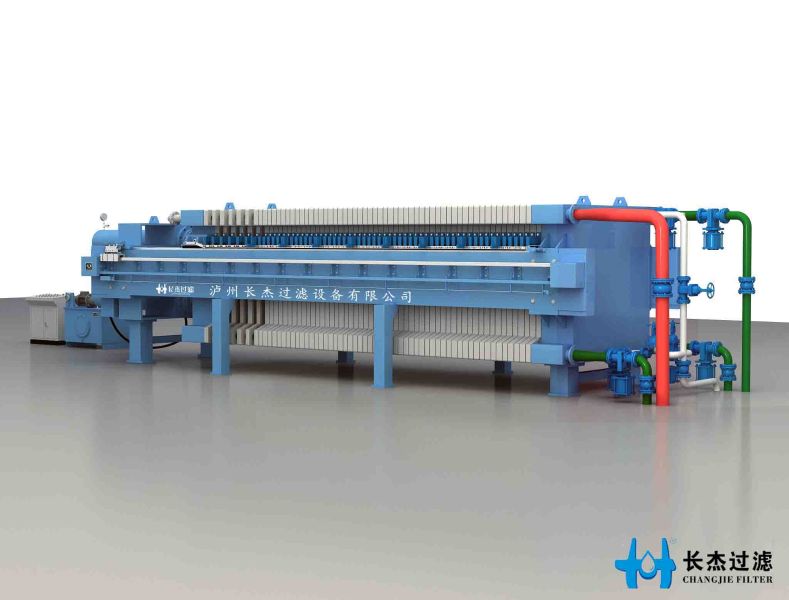

　　CJWA自动洗涤压滤机是具有给料过滤、无隔膜压榨过滤、无短路洗涤、高效吹干过滤的高效脱水及洗涤流程的新型过滤设备。该设备在达到更优滤饼含水率及洗涤指标的条件下，取代现有常规的两段或多段联合洗涤脱水工艺，实现选矿、冶炼、黄金浸出、锂盐、冶炼等行业洗涤、过滤无短路一体化，从而大幅缩短工艺流程，减化设置配置，节约厂房及操作工人，减少有害物质的二次污染，提升有价资源的回收率，降低投资及运行成本，提升企业的经济及社会效益。

　　CJWA automatic washing filter press is a new type of filtration equipment with high efficiency dewatering and washing process: feeding, diaphragmless pressing, no short-circuit washing, high efficiency blow drying. The equipment replaces the conventional two-stage or multi-stage process combined washing and dewatering under the condition of achieving better filter cake moisture content and washing index, and realizes no short circuit washing and filtering in mineral processing, smelting, leaching gold, lithium salt and other industries, which greatly shortens the process, saves space and labor, reduces the auxiliary equipment configuration, the probability of secondary pollution, investment and operating costs, improves the recovery rate of valuable resources, and enhances the economic and social benefits of enterprises.

工作原理

　　CJWA自动洗涤压滤机采用无中心孔独特设计，直接杜绝中心孔洗涤不到，或者洗涤工序复杂等问题，实现滤饼洗涤率远高于同类产品，且洗涤滤饼均匀。（箱式和箱式隔膜压滤机采用中心孔进料方式，洗涤和空气吹干均存在短路现象，无法有效洗涤和吹干也是其他压滤机洗涤水耗量大，且洗涤不均匀的原因）。

Filter Principle

　　The CJWA automatic washing filter press adopts a unique feeding design without a central hole to directly eliminate the problem that the central hole is not washed, or the washing process is complicated, reaching much higher washing rate than that of similar products, and uniform washing effect. (The box type and box type diaphragm filter press adopts the central hole feeding mode, which results in the short-circuit phenomenon in washing and blowing process results, that is the reason other filter press cannot reach uniform washing and need large water consumption.)

　　1、给料过滤即依靠渣浆泵的输送压力，使进入滤室的矿渣被滤布截留，形成滤饼；水透过滤布排除，实现固液分离；

　　2、压榨过滤是在给料过滤形成的疏松滤饼一侧施加压力，收缩其空隙，排除空隙中的水；

　　3、无短路洗涤是采用长杰独特的在线洗涤方式，通过洗涤泵将洗涤液均匀穿透滤饼，实现滤饼各点洗涤效果相同，减少耗水量、提高洗涤率；

　　4、吹干过滤是采用介质高速穿过滤饼间歇，带走间歇水，进一步降低滤饼含水率。无论采用多大的压滤压榨滤饼，滤饼的间隙也不能完全消除，因此，增加吹干过滤，用高压空气分钟透过滤饼间隙并带走滤饼间隙中的水分，是降低滤饼含水率的重要手段。然而有效的防止吹干时压缩空气短路，却是能否实现有效吹干的关键。

　　1. The feed filtration is based on the delivery pressure of the slurry pump, so that the slag entering the filter chamber is trapped by the filter cloth to form a filter cake; the water is filtered through the filter cloth to achieve solid-liquid separation;

　　2. Press filtration is to press on the side of the porous filter cake formed by the feed filtration, shrinking the voids and eliminating the water in the voids;

　　3. No short-circuit washing is based on Changjie's unique online (while washing without unloading filter cake) washing method, washing liquid evenly penetrates the filter cake by the washing pump to reach the same washing effect at each point of filter cake, reducing the water consumption and increasing the washing rate;

　　4. Dry-blowing filtration uses high-speed compressed air to pass through the cake and remove intermittent water, further reducing the moisture content of the cake. Regardless of how much pressure is used to press the filter cake, the gap between the material particles cannot be completely eliminated. Therefore, the dry-blowing filtration, using high-pressure air to pass through the cake and remove moisture from the particles gap, which is the important means to reduce the moisture content of the filter cake. However, effective prevention of short-circuit of compressed air during drying is the key to effective drying.

设备构成

　　设备由洗涤过滤机构、洗涤过滤板支撑、压紧拉开机构、液压机构、自动控制机构、管道开合执行机构构成；

　　Equipment Composition

　　The equipment is composed of a washing and filtering mechanism, a pressing and pulling mechanism, a hydraulic mechanism, an intelligent control mechanism, a management auxiliary mechanism, and a pipe opening and closing execution mechanism.

设备功能

　　1、设备具有洗涤、过滤功能，洗涤过滤一机完成；

　　2、设备具有自动压紧洗涤过滤板、变速开板卸料的功能；

　　3、一键完成全部洗涤过滤过程，无需人工参与；

　　4、实现初段、中段、末段洗液的自动分类输送、存储，自动实现逆流洗涤；

　　5、设备具有滤布自动再生功能。

Equipment Functions

　　1. It has the washing and filtering functions, with washing and filtering integrated on one machine;

　　2. It has the functions of automatically pressing the plate and opening the plate at variable speed while unloading;

　　3. It requires no labor force but one key to complete the whole washing and filtering process;

　　4. It can realize automatic sorting, delivery and storage of the initial, middle and end washes, and automatically realize counter current washing;

　　5. It is capable of automatic regeneration of filter cloth.

应用领域

　　长杰洗涤过滤一体机实现了洗涤、过滤一机完成，在保证滤饼低含水率及高产能的同时，实现了滤饼的有效洗涤，洗涤率高达99.5%，且大幅节约洗涤用水，提高了滤液中有价资源的回收率，减少了污水处理量，为锂盐、黄金、湿法冶金及化工等行业缩短生产工艺，降本增效提供了强力支撑。

　　1、锂盐洗涤过滤

　　长杰洗涤过滤一体机助力锂盐的过滤、洗涤一机完成，实现滤饼含水率＜15%，渣锂含量比其原采用的过滤-搅拌洗涤-过滤的流程还要低一个数量级，且耗水更少，原工艺中还增加一段滤饼烘干工艺，采用长杰洗涤过滤一体机后，烘干工艺取消，缩短工艺流程，减少设备投入，极大降低生产成本。

　　2、黄金洗涤过滤工艺

　　针对黄金尾矿及浸出渣中氰化物含量高的情况，长杰洗涤压滤机凭借逆流洗涤工艺，在不使用催化剂的情况下，金矿除氰率高达99.5%以上，确保滤饼氰化物含量降低到0.5mg/l以下，有效规避了二次污染，直接达到国家黄金尾矿一类环保排放标准，且大幅提升了滤液中黄金的回收率。

　　3、湿法冶金洗涤过滤

　　通过无短路高效洗涤，大幅降低滤渣中有价成份的含量，将多段过滤——洗涤——再过滤——洗涤，缩短为一机完成，在提高有价成份收率的同时，缩短了整个作业流程，为业主大幅降低基建、采购、管理、运行等成本提供了有力的支撑。

Application Field

　　Changjie washing filter press integrates washing and filtering on one machine. While ensuring low water content of filter cakes and high productivity, it realizes effective washing of filter cakes, with the washing rate of as high as 99.5%. It also greatly saves washing water, improves the recovery rate of valuable resources in filtrate, reduces the amount of wastewater to be treated, and provides strong supports for shortening production process, reducing cost and increasing efficiency in lithium salt, gold, hydrometallurgy and chemical industries.

　　1. Lithium salt washing and filtration

　　Changjie washing filter press realizes the integration of washing and filtering of lithium salt and makes the water content in filter cakes less than 15%. With this kind of filter press adopted, the lithium slag content is one order of magnitude lower than that of the original filtering-agitator treating-filtering process, and water is less consumed. The filter cake drying process which was added in the original process is cancelled after using Changjie washing and filtering machine, the process flow is shortened, the equipment investments are reduced, and the production costs are greatly reduced.

　　2. Gold washing and filtration

　　In view of the high cyanide content in gold tailings and leaching residues, Changjie washing filter press adopts the counter-current scrubbing process, with which the cyanide removal rate of gold ore reaches 99.5% without using catalyst, ensuring that the cyanide content of filter cakes is reduced to less than 0.5 mg/l, which effectively avoids the secondary pollution, directly meets the class-I national  environmental protection discharge standard of gold tailings, and greatly improves the recovery rate of gold in filtrate.

　　3. Hydrometallurgy washing and filtration

　　Through the high-efficiency washing without short circuit, the content of valuable compositions in filter residue is greatly reduced, and the multi-stage filtering and washing-re-filtering-rewashing is shortened and completed one machine. While increasing the yield of valuable compositions, the whole operation process is shortened, which provides strong support for owners to reduce the costs of infrastructure, procurement, management and operation.

应用案例

Application Cases

　　1、江西某锂云母提锂公司

　　1. A Company of Lithium Extraction from Lepidolite in Jiangxi Province

　　过滤物料：锂石膏渣

　　Filter Material: Lithium gypsum slag

　　物料细度：-400目70%

　　Material Fineness: -400 mesh, 70%

　　给料浓度：45-50%

　　Feeding concentration: 40-50%

　　滤饼含水率：16%—17%

　　Moisture content: 16-17%

　　设备数量：1

　　Quantity: 1

　　单台面积：60平方

　　Area per set: 60㎡

　　单台产能：＞50t/d

　　Capacity of Single set: 50t/d

　　该厂采购CJW系列洗涤压滤机，实现锂石膏渣洗涤、过滤洗涤一机完成，滤饼含水率16%~17%，经3次有效洗涤后，仅需0.4倍水耗量，滤饼中氧化锂洗涤到<0.1%。

　　The Plant purchased CJW series washing filter press to filter and wash lithium gypsum slag, after that the water content was 16%~17%, the lithium oxide content in filter cakes was <0.1% after being washed by water of 0.4 time for three times.

　　2、某锂业集团四川锂盐厂

　　2. A Lithium Salt Plant in Sichuan Province

　　过滤物料：碳酸锂渣

　　Filter Material: Lithium carbonate slag

　　物料细度：-400目75%

　　Material Fineness: -400 mesh, 75%

　　给料浓度：20-30%

　　Feeding concentration: 20-30%

　　滤饼含水率：15-18%

　　Moisture content: 15-18%

　　设备数量：2

　　Quantity: 2

　　过滤面积：152平米

　　Area per set: 152㎡

　　单台产能：103 t/d

　　Capacity of Single set: 103t/d

　　该厂采用CJW系列洗涤压滤机实现锂盐洗涤、过滤一机完成，滤饼含水率<18%，过滤效率达68kg/m2h，取消一段烘干工艺；过滤浆料锂含量约40g/l，经0.32倍水均匀洗涤后，渣锂含量<0.03%，且耗水耗能至少节约50%，大幅降低了生产成本。

　　The Plant adopted CJW series washing filter press to wash and filter lithium salt, the water content of filter cakes was<18%, the filtration efficiency was up to 68kg/m2h, and one drying process was cancelled; lithium content of the filtered slurry was about 40g/l and was <0.03% after being uniformly washed by water of 0.32 times, the water and energy consumption was reduced by more than 50% and production costs were reduced significantly.

　　3、四川某电解锰厂

　　3. An Electrolytic Manganese Plant in Sichuan Province

　　过滤物料：浸出锰渣

　　Filter Material: Leaching manganese slag

　　物料细度：-100目90%

　　Material Fineness: -100 mesh, 90%

　　给料浓度：15%

　　Feeding concentration: 15%

　　滤饼含水率：18%

　　Moisture content: 18%

　　设备数量：3

　　Quantity: 3

　　单台面积：712平米

　　Area per set: 712㎡

　　单台产能：312t/d

　　Capacity of Single set: 312t/d

　　该厂原使用某知名厢式隔膜压滤机处理浸出锰渣，含水率高达25%，无洗涤洗涤，卸料人工强度大，开机率低；后技改采用CJW洗涤压滤机，含水率18%，锰洗涤率>95%，锰渣洗涤后销售到水泥厂，实现了浸出锰渣的综合利用。

　　The Plant formerly used the chamber membrane filter press to treat the leaching manganese slag, with the water content up to 25%, no washing function, requiring high labor intensity and low operating rate. After the CJW washing filter press was adopted in technical improvement, the water content reached 18%, the manganese washing rate was >92%, and the manganese slag was comprehensively utilized.

　　4、湖南某钨业公司

　　4. A Tungsten Company in Hunan Province

　　过滤物料：钨精矿

　　Filter Material: Tungsten concentrate

　　给料浓度：50%

　　Feeding concentration: 50%

　　滤饼含水率：≤10%

　　Moisture content: ≤10%

　　设备数量：1

　　Quantity: 1

　　单台面积：512平米

　　Area per set: 512㎡

　　单台产能：480t/d

　　Capacity of Single set: 480t/d

　　5、某新材料集团天津市加工中心

　　5. A Manufacturing Center of New Material Group in Tianjin

　　过滤物料：铁渣

　　Filter Material: Iron slag

　　给料浓度：40%

　　Feeding concentration: 40%

　　滤饼含水率：≤21%

　　Moisture content: ≤21%

　　设备数量：1

　　Quantity: 1

　　单台面积：410平米

　　Area per set: 410㎡

　　单台产能：100t/d

　　Capacity of Single set: 480t/d

　　该公司铁渣湿法冶炼项目采用CJW系列洗涤压滤机，滤饼含水率<21%，经1.5倍水均匀洗涤后，有效洗涤回收率高，耗水耗能至少节约50%。

　　The Hydrometallurgy Project of this company adopts CJW series washing filter press, the moisture content of the filter cake is <21%, the effective washing recovery rate is high after washing evenly with 1.5 times water, and the water consumption and energy consumption is reduced at least 50%.
